A paper airplane, which is simply a flat plate, has a bottom and top exactly the same shape and length. In both examples, the only difference is the relationship of the airfoil with the oncoming airstream (angle). These are seen in high-speed aircraft having symmetrical wings, or on symmetrical rotor blades for many helicopters whose upper and lower surfaces are identical. In fact, many lifting airfoils do not have an upper surface longer than the bottom, as in the case of symmetrical airfoils. The production of lift is much more complex than a simple differential pressure between upper and lower airfoil surfaces. Airfoil BehaviorĪlthough specific examples can be cited in which each of the principles predict and contribute to the formation of lift, lift is a complex subject. Pressure distribution on an airfoil and CP changes with AOA. An airplane’s aerodynamic balance and controllability are governed by changes in the CP. In the design of wing structures, this CP travel is very important, since it affects the position of the air loads imposed on the wing structure in both low and high AOA conditions. At high angles of attack, the CP moves forward, while at low angles of attack the CP moves aft.

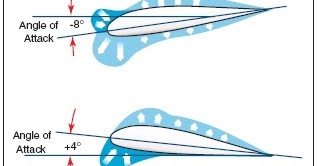

The average of the pressure variation for any given AOA is referred to as the center of pressure (CP). Figure 4-7 shows the pressure distribution along an airfoil at three different angles of attack. This negative pressure on the upper surface creates a relatively larger force on the wing than is caused by the positive pressure resulting from the air striking the lower wing surface.
#Pressure distribution airfoil full size#
Land a plane quickly and enjoyably.įrom experiments conducted on wind tunnel models and on full size airplanes, it has been determined that as air flows along the surface of a wing at different angles of attack (AOA), there are regions along the surface where the pressure is negative, or less than atmospheric, and regions where the pressure is positive, or greater than atmospheric. Prevent an airplane from accidentally stalling or spinning. Learn the "stick and rudder" philosophy of flying. Make flight training easier, less expensive, and more enjoyable.
